Specifications
General

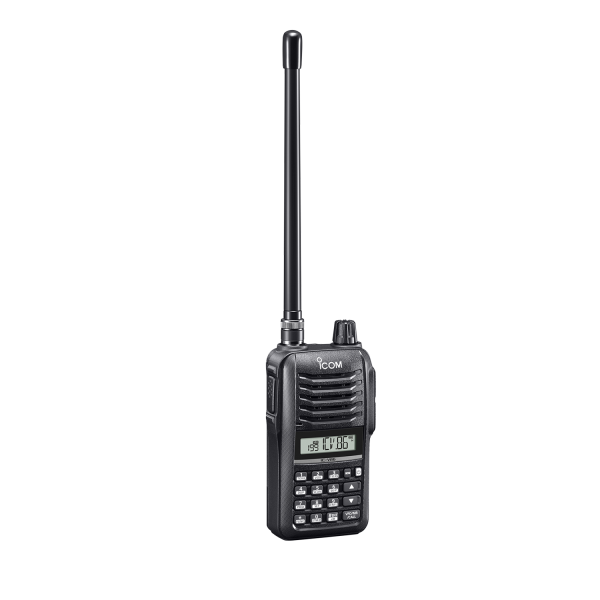

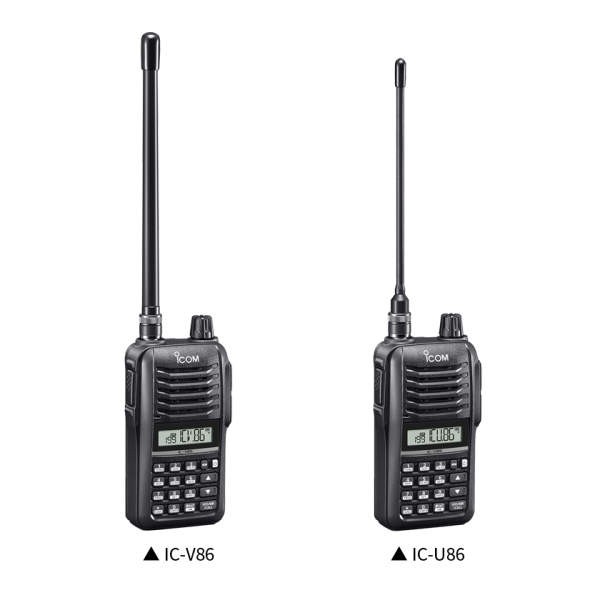

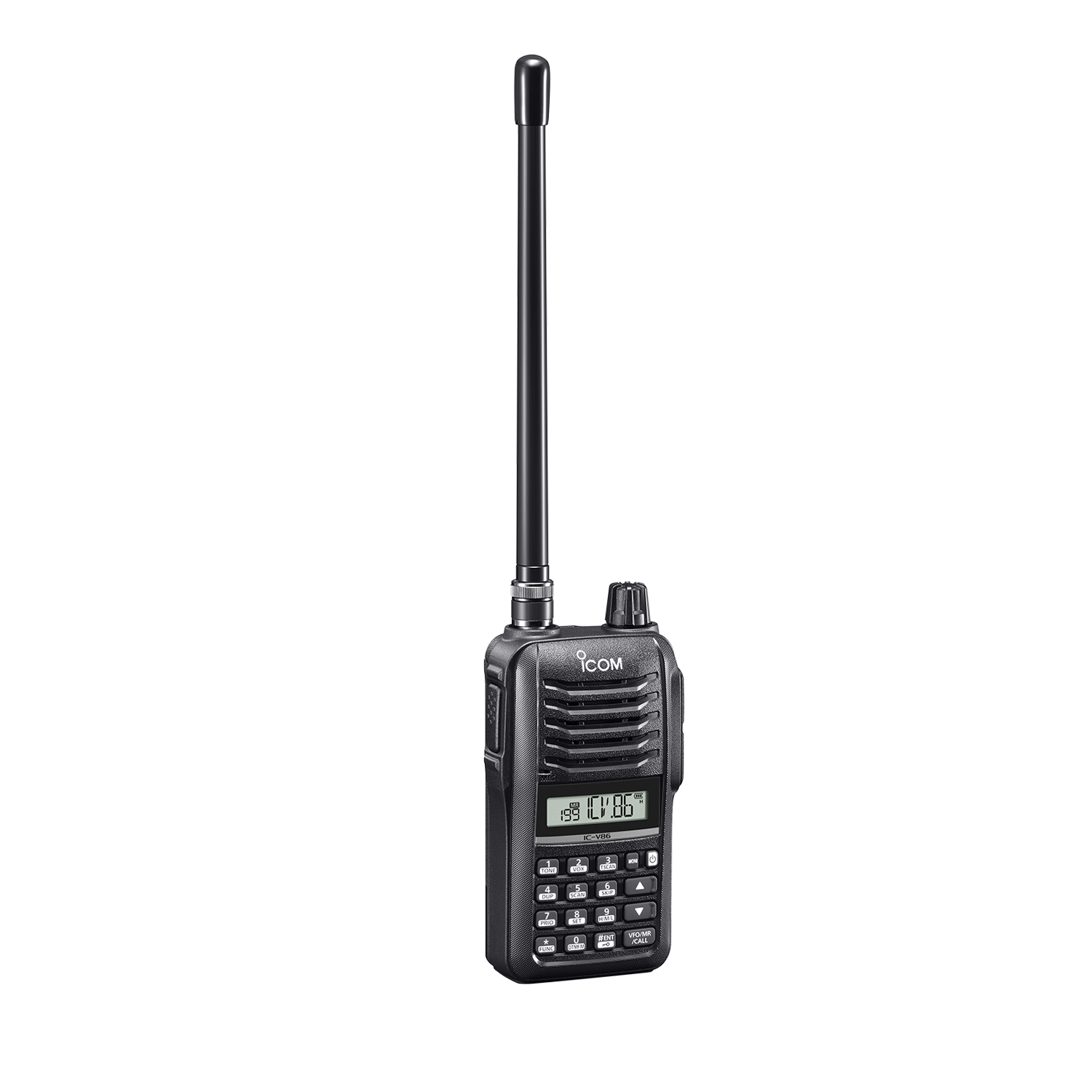

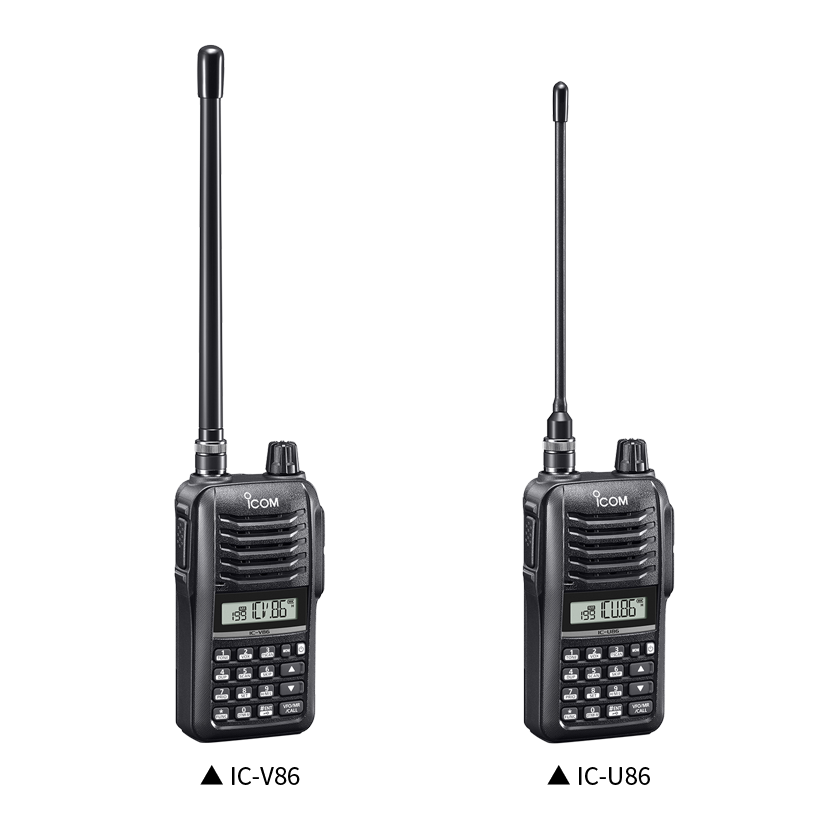

| IC-V86 | IC-U86 | ||
|---|---|---|---|
| Frequency range (TX/RX guaranteed range) |
TX: 144–148 MHz |
TX: 430–450 MHz |
|
| Type of emissions |
F2D, F3E (FM, FM-N) |
||
| Number of channels |
207 channels (200 memory channels, 1 call channel and 6 scan edges) |
||
| Antenna impedance |
50Ω |
||
| Power supply requirement |
7.5V DC |
||
| Operating temperature range |
–20 ˚C to +60 ˚C, –4 °F to +140 °F |
||
| Frequency stability |
±2.5ppm (–20 ˚C to +60 ˚C, –4 °F to +140 °F) |
||
|
Current drain (For the transceiver with a "U" mark on the serial number label) |
TX (EX Hi/Hi/Mid/Low) |
1.6/1.4/1.0/0.5 A typical | EXP1: 1.6/1.5/1.0/0.5 A typ. EXP2: 1.6/1.4/0.9/0.5 A typ. |
| RX (Max. audio) |
450 mA typ. (INT SP), |
450 mA typ. (INT SP), |
|
| Dimensions (W×H×D) (Projections not included) |
58.6 × 112 × 30.5 mm, |
||
| Weight (Approximate) |
300 g, 10.6 oz |
290 g, 10.2 oz |
|
Transmitter
| IC-V86 | IC-U86 | |
|---|---|---|
| Output power (EX Hi/Hi/Mid/Low) |
7.0/5.5/2.5/0.5 W |
5.5/4/2/0.5 W |
| Maximum frequency deviation |
±5.0 kHz/±2.5 kHz (Wide/Narrow) |
|
| Spurious emissions |
Less than –60 dB |
|
| External microphone connector |
3-conductor 2.5 (d) mm (1/10")/2.2 kΩ |
|
Receiver
| IC-V86 | IC-U86 | ||
|---|---|---|---|
| Sensitivity |
–124 dBm typical |
EXP1: –121 dBm typical |
|
| Squelch sensitivity |
–126 dBm typical |
EXP1: –123 dBm typical |
|
| Selectivity (Wide/Narrow) |
75 dB typical/ |
70 dB typical/ |
|
| Intermodulation |
65 dB typical |
||
| Audio output power (For the transceiver with a "U" mark on the serial number label) |
Internal SP |
1500 mW typical (with 8 Ω load) |
|
| External SP |
450 mW typical (single end) |
||
| External speaker connector |
3-conductor 3.5(d)mm (1/8″)/8Ω |
||
Applicable U.S. Military Specifications
| Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Rain Blowing/Drip | 506.5 | I, III |
| Humidity | 507.5 | II |
| Salt Fog | 509.5 | – |
| Dust Blowing | 510.5 | I |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D, -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Dust and Water | IP54 (Dust-protection, water resistance) |
All stated specifications are subject to change without notice or obligation
Supplied Accessories
- BP-298/BP-264, battery pack*
- BC-240, Desktop charger
- BC-242, AC adapter
- MB-124, belt clip
- Antenna*
* May differ, depending on transceiver version
