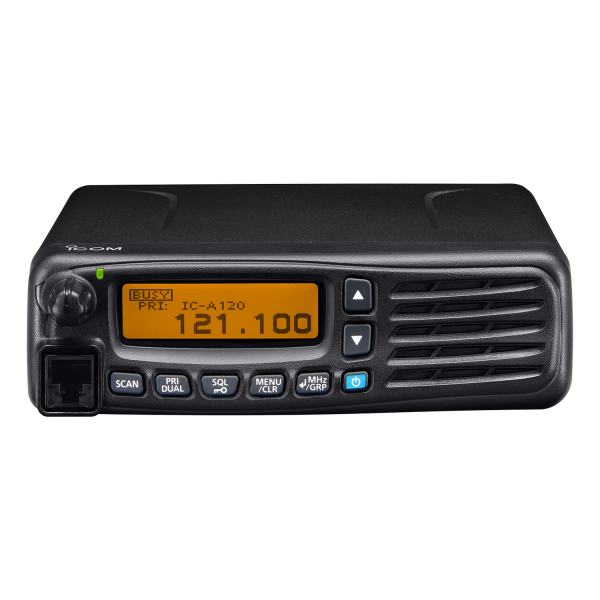

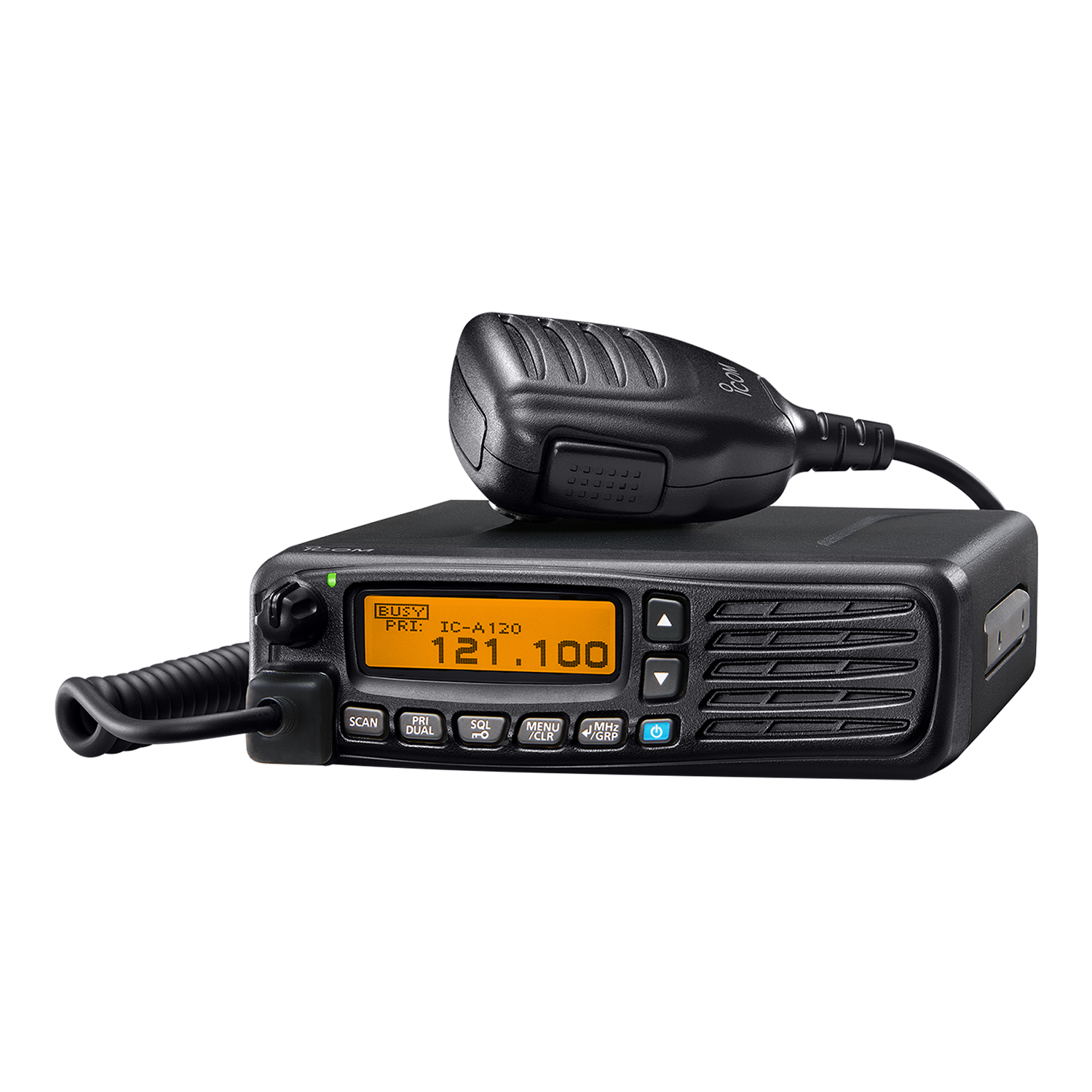

Specifications
General
| Frequency range (TX/RX) | 118.000–136.992 MHz | ||
|---|---|---|---|
| Channel spacing | 25 kHz/8.33 kHz | ||
| Type of emission | 6K00A3E, 5K60A3E (FCC/EXP) 6K00A3E (Industry Canada) |
||
| Operating temperature range | –30˚C to +60˚C; –22˚F to +140˚F | ||
| Frequency stability | ±5 ppm (–30˚C to +60˚C) | ||
| Antenna connector | SO-239 (50 Ω) | ||
| Number of memory channels | 200 channels | ||
| Power supply requirements | 13.75 V/27.5 V DC | ||
| Current drain (at 13.75 V) |
TX | 5.0 A (maximum) | |
| RX | Stand-by | 0.5 A | |
| Max. audio | 4.0 A | ||
| Dimensions (W×H×D) (Projections are not included) |
161×45×175 (mm) 6.34×1.77×6.89 (in) (approximately) |
||
| Weight (approximately) | 1.5 kg; 3.3 lb (main unit) | ||
Transmitter
| Output power (at 13.75 V) (Carrier Power) |
9.0 W typical 10.0 W maximum |
|---|---|
| Spurious emissions | Less than –60 dBc |
| Modulation | 70% to 100% |
| Microphone impedance | 600 Ω |
Receiver
| Intermediate frequencies | 38.85 MHz/450 kHz (1st/2nd) | |
|---|---|---|
| Sensitivity (at 6 dB S/N) | Less than 1 μV | |
| Selectivity | 8.33 kHz | 2.778/7.37 kHz (6 dB/60 dB) |
| 25 kHz | 8/25 kHz (6 dB/60 dB) | |
| Spurious response rejection | More than 74 dBμ | |
| Audio output power (at 10% distortion, 60% modulation) |
Internal SP (8 Ω load) |
1.5 W typical |
| External SP (8 Ω load) |
More than 10 W | |
| Headphone (500 Ω load) |
More than 100 mW | |
Measurements made in accordance with FCC Part 87 and Industry Canada for USA version. All stated specifications are subject to change without notice or obligation.
Applicable U.S. Military Specifications & IP Rating
Icom makes rugged products that have been tested to and passed the following MIL-STD requirements and strict environmental standards.
| Standard |
MIL-810 G | |
|---|---|---|
| Method | Procedure | |
| Low Pressure | 500.5 | I, II |
| High Temperature | 501.5 | I, II |
| Low Temperature | 502.5 | I, II |
| Temperature Shock | 503.5 | I-C |
| Solar Radiation | 505.5 | I |
| Humidity | 507.5 | II |
| Vibration | 514.6 | I |
| Shock | 516.6 | I, IV |
Also meets equivalent MIL-STD-810-C, -D -E and -F.
Applicable IP Rating
| Ingress Protection Standard | |
|---|---|
| Dust & Water | IP54 (Dust-protection and water resistance) |
All stated specifications are subject to change without notice or obligation.

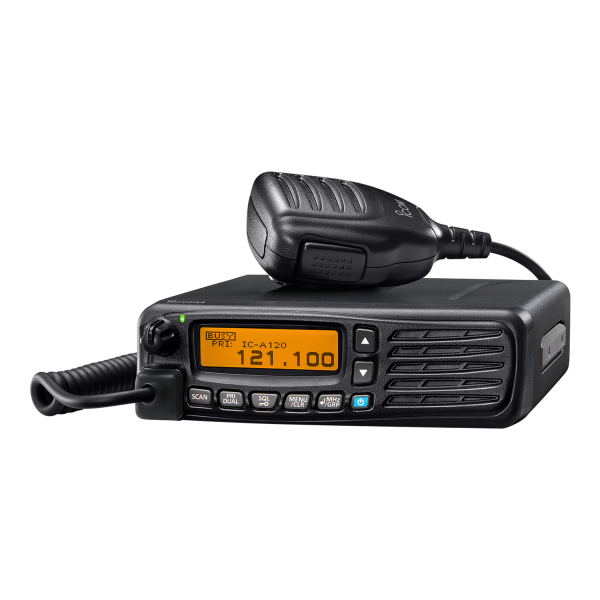

Supplied Accessories
- Hand microphone, HM-216
- DC power cable
- Mounting bracket kit
- Microphone hanger kit
- Fuses
